Clear span fabricated steel barn prefab metal hall

製品詳細

起源の場所: チンダオ,中国

ブランド名: KXD

証明: CE, ISO, SGS

モデル番号: S-0042

支払及び船積みの言葉

最小注文数量: 500平方メートル

価格: US$ 50-80 per square meter

パッケージの詳細: 鋼パネルのための散装,鋼構造のための鋼パレット,小型設置用アクセサリーのための木箱

受渡し時間: 30~40 営業日

支払条件: L/C,T/T

供給の能力: 月3千トン

お問い合わせ
製品詳細
ハイライト:
サイズ:
顧客 の 要求
ドア:
引き戸か転がりドア
色:
顧客からの要求
訪問:
ワークショップ訪問とチェック
表面:
熱浸しでガルバン化/塗装
フレーム:
鋼鉄構造
一生:
50年以上
構造型:
高強度鋼筋構造枠
モデル番号:
KXD-SSB130
プレハブ:
オフサイト
設置:
FAST
サイズ:
顧客 の 要求
ドア:
引き戸か転がりドア
色:
顧客からの要求
訪問:
ワークショップ訪問とチェック
表面:
熱浸しでガルバン化/塗装
フレーム:
鋼鉄構造
一生:
50年以上
構造型:
高強度鋼筋構造枠
モデル番号:
KXD-SSB130
プレハブ:
オフサイト
設置:
FAST
製品の説明

Steel Stucture Building Description:

Prefab steel structure house is generally done with a series of steel structure, including steel columns, steel beams, purlin and so on. These main components constitute the load-bearing structure of the house. Due to light weight and easy construction, there is a great demand for the structural steel house. The steel structure house, the most cost-efficient building, which plays one important role in construction field.

Nuts and Bolts are often considered to be an insignificant part of steel structure building, but this little part makes a big difference. Nuts and Bolts are the primary tools used to hold together the pieces of PEB construction together. There are numerous kinds of nuts and bolts available in the market for construction purposes, and they play a significant role in the PEB companies and industries. So the quality is also important in the whole buildings structure. Thus, screws are essentially important to hold the whole premise of Pre-engineered Steel Buildings together.

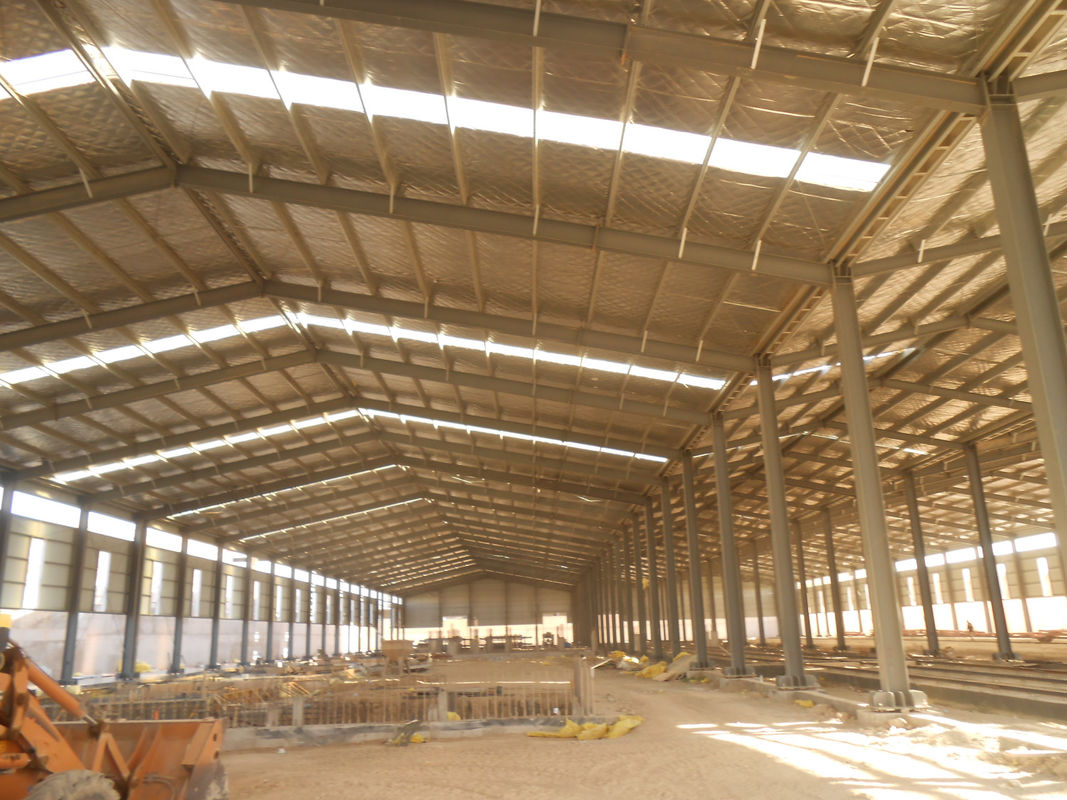

Clear span fabricated steel barn prefab metal hall 0

Items

Specification

Main steel frame Column

Q355 Welded H Section Steel (equivalent to S355JR, ASTM A572 Gr. 50)

Beam

Q355 Welded H Section Steel (equivalent to S355JR, ASTM A572 Gr. 50)

Secondary Frame Purlin

Q235 C and Z purlin (equivalent to S235JR, ASTM A36)

knee bracing

Q235 Angle Steel (equivalent to S235JR, ASTM A36)

tie beam

Q235 Circular Steel Pipe (equivalent to S235JR, ASTM A36)

bracing

Q235 Round Bar (equivalent to S235JR, ASTM A36)

Cladding system Roof Panel

Insulated Sandwich Panel/ Corrugated Steel Sheet/ Skylight/ Ventilator

Wall Panel

Insulated Sandwich Panel/ Corrugated Steel Sheet/Glass curtain wall/ Parapet

Window

Aluminiumn Alloy Window/ PVC Window/ Sandwich Panel Window

Door

Sliding Sandwich Panel Door/ Rolling Metal Door/ Personal Door

steel structure service liftetime

50-70 years


KXD Company Service:

Visit and Check Service

You are warmly welcome to visit our factory before the order, during the production and in the loading.

Flexible Payment

Different payment term like T/T, LC, with FOB, CIF, CFR on options.

Design Service

For products, we accept the production exactly same as your own drawing details. Different standards or the equivalent exchange are both acceptable.

If you have only ideas, we could offer free architectural design and production for you.

Production Service

All raw materials are purchased from qualified mills and the materials quality should be checked when received.
Quality control will be done in each production progress to guarantee every steel component quality. And each component will packed and protected before the shippment.

Installation Support

We offer free assemble guide and solve any technical questions in the installing time.

If the client has the demands, we could also send our engineer to guide or send our installing team to install on site. Different plans are for clients' option.


KXD's Design Ability:

Our elite steel structure technology team is a repository of expertise and dedication, consisting of skilled technicians, meticulous manufacturers, and master welders. With vast expertise in all facets of steel structure technology, we promise precise and reliable technical support for complex warehouses, manufacturing plants, and commercial centers.

Clear span fabricated steel barn prefab metal hall 1

KXD's Production Ability:

Armed with cutting-edge tools and adhering to industry-leading standards, we ensure the structural integrity and premier performance of each creation. Driven by innovation, we merge unwavering professional ethics with an unstoppable drive to transform intricate engineering specifications into extraordinary steel masterpieces.

Clear span fabricated steel barn prefab metal hall 2

Clear span fabricated steel barn prefab metal hall 3

Welcome to Contact further & Visit!
