製品詳細
起源の場所: 中国
ブランド名: KXD Steel Structure
証明: ISO9001
モデル番号: KXD-SW1255
支払及び船積みの言葉
最小注文数量: 200平方メートル
価格: USD 30-80 /square meters
パッケージの詳細: スチールパレットまたはバルク
受渡し時間: 40~55日
支払条件: L/C、T/T、ウェスタンユニオン、マネーグラム
供給の能力: 月あたり15000トン
標準: |
GB,ASTM,AISI,DIN,BS |
母屋: |
C.Z 形状鋼チャネル,C/Z 鋳造鋼 ((Q235) |
表面処理: |
熱浸し 熱電圧 爆発浄化 球体噴射 塗装 熱電圧 |
ウィンドウ: |
アルミ合金,PVC窓,プラスチック製鋼,アルミ合金 |
屋根材: |
シングル・シート・スティール,EPS・サンドイッチ・パネル,PU,ロックウル |
メインフレーム: |
H ビームとコラム,固体H形鋼ビーム |
ビーム: |
H 鋼材 鋼管 角鋼 熱巻き H ビーム |
ドア: |
スライドドア,ローリングシャッタードア |
カスタマイズ: |
利用可能 |
モデル番号: |
KXD-SSW181 |
ショットブラストレベル: |
サ2.5 |
主な構造: |
鉄骨構造フレーム |
タイビーム: |
丸パイプまたは角チューブ |
サンプル時間: |
標準部品があれば7日 |
色: |
カスタム承認 |
第三者テスト: |
SGS、BV |
基礎タイプ: |
コンクリート/鋼 |
厚さ: |
5-28mm |
耐火性: |
難燃性素材を使用 |
迅速 に 構築 さ れ た: |
簡単なインストール |
Web幅: |
7-28mm |
寿命: |
20～50年 |
接続タイプ: |
ボルト締め、溶接 |
標準: |
GB,ASTM,AISI,DIN,BS |
母屋: |
C.Z 形状鋼チャネル,C/Z 鋳造鋼 ((Q235) |
表面処理: |
熱浸し 熱電圧 爆発浄化 球体噴射 塗装 熱電圧 |
ウィンドウ: |
アルミ合金,PVC窓,プラスチック製鋼,アルミ合金 |
屋根材: |
シングル・シート・スティール,EPS・サンドイッチ・パネル,PU,ロックウル |
メインフレーム: |
H ビームとコラム,固体H形鋼ビーム |
ビーム: |
H 鋼材 鋼管 角鋼 熱巻き H ビーム |
ドア: |
スライドドア,ローリングシャッタードア |
カスタマイズ: |
利用可能 |
モデル番号: |
KXD-SSW181 |
ショットブラストレベル: |
サ2.5 |
主な構造: |
鉄骨構造フレーム |
タイビーム: |
丸パイプまたは角チューブ |
サンプル時間: |
標準部品があれば7日 |
色: |
カスタム承認 |
第三者テスト: |
SGS、BV |
基礎タイプ: |
コンクリート/鋼 |
厚さ: |
5-28mm |
耐火性: |
難燃性素材を使用 |
迅速 に 構築 さ れ た: |
簡単なインストール |
Web幅: |
7-28mm |
寿命: |
20～50年 |
接続タイプ: |
ボルト締め、溶接 |

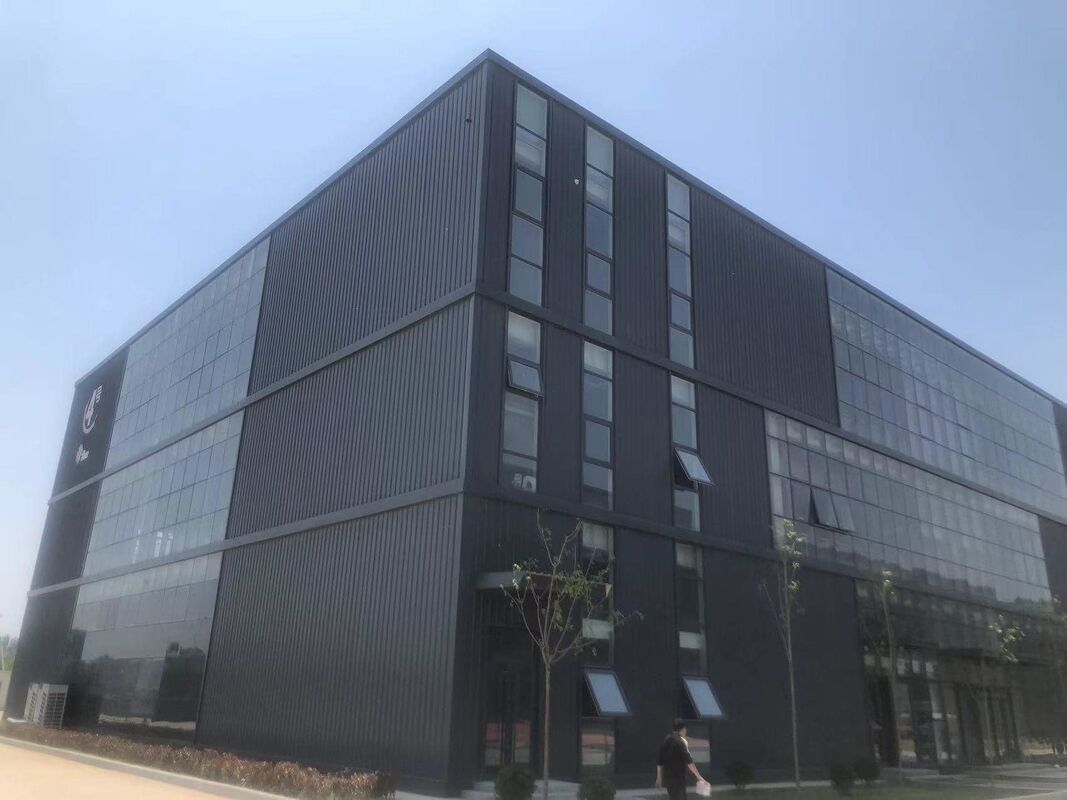

| Prefabricated Steel Structure Building Description: QINGDAO KXD STEEL STRUCTURE CO.,LTD |
| Specifications | |
| 1)Size(m): | Width * Length * Height; |
| 2)Type: | Single slope, double slope, Multi-slope; |
| Single span, double-span, Multi-span; | |
| Single-floor, double-floor, Multi-floor; | |
| 3) Base: | steel foundation bolts |
| 4) Steel frame: | Material Q345(S355JR)(Gr50)or Q235(S235JR) steel; |
| Straight cross-section or Variable cross-section; | |
| steel welded H section, painted or galvanized. | |
| 5) Bracing: | X-type, V-type, or other type bracing made from angle, round bar, etc ; |
| 6) Wall & Roof Purlin: | C section channel or Z section channel ,Size from C80~C300; Z100~Z300; |
| 7) Roof & wall cladding | Single color corrugated steel sheet 0.326~0.7mm thickness; |
| Sandwich panel with EPS, ROCK WOOL, GLASS WOOL, PU, etc. insulation, thickness around 50mm 75mm, 100mm, 120mm 150mm 200mm; | |
| Recommend coating PVDF SMP HDP PE | |
| 8)Window: | UPVC/PVC or Aluminum Alloy window frame with glass. |
| 9)Door: | Exterior door: Sliding or Roller shutter door. |
| Internal door:50mm thickness EPS sandwich panel with an aluminum alloy door frame | |
| 10) Gutter material: | Color steel sheet, galvanized steel or stainless steel; |
| 11)Rainspout: | PVC pipe |
| 12)Connection | high-strength bolts, intensive bolt, and self-drilling screws. |
| 13)Accessories: | Skylight panel, Ventilation, Fasteners etc |
| 14)Surface process: | Shot blasting Sa2.5; Two layers of Anti-rust Painting or galvanized |
| 15) Packing: | Main steel frame without packing load in 40' GP, roof and wall panel load in 40' HQ |
Product Features
These Prefabricated Steel buildings are easy to assemble, energy efficient, attractive, economical over time, and can be shipped in as little as 5 weeks. Our Engineers and staff are always on standby to assist with complex projects.
Our steel structure building has a flexible layout, has low foundation cost, and can be designed as per the buyer's requirements
1. Location (where will it be built?) Which country? Which city?
2. Size: Length * width * Eve height _______ mm * _______ mm * _______ mm
3. wind load (maximum. Wind speed) _____ kn/m2, _____ km/h, _____ m/s
4. snow load (maximum Snow height) _____ kn/m2, _____ mm, temperature range?
5. Anti-earthquake _____ level
6. Brick wall needed or not? If yes, is it 1.2m high or 1.5m high? or other?
7. thermal insulation. If yes, EPS, fiberglass wool, rock wool, and PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8. Door quantity&size _____ units, _____ (width) mm * _____ (height) mm
9. window quantity&size _____ units, _____ (width) mm * _____ (height) mm
10. crane needed or not If yes, _____ units, max. Lifting weight____tons; Max. Lifting height _____m
Main steel structure frame :
|
Plastic Steel Window/Aluminum-alloy Window; Sliding Door/Folding Door.
The gutter, Downpipe, Transparent sheet, Ventilator, and Bridge Crane will be fitted according to the client’s requirements.
Our company can design, fabricate, load, and erect steel structure buildings according to clients’ needs.
1. Make suitable design plans and detailed construction drawings of steel structure buildings according to the land layout area and usage of buildings by Tekla, PKPM, and 3D3S.
2. Steel structure buildings consultation service.
3. Budget offers of building for contractors.
4. Transportation & delivery as your need.
5. Fabrication, shot blasting & painting as different requests.
6. Erection & installation of steel structure building. Our technicians and skilled workers can be on-site to guide or install the building as needed
1. One-stop service:
Total solution for projects; 3D model design; design drawing and construction drawing; online technical support; after-sales service: return and replacement.
2. Well-equipped factory:
Our own factory-patented packaging and convenient transportation save you from worries.
3. High-quality products:
Our own professional research & development team and the QC team guarantee that our customers will receive products with perfect welding and accurate dimensions.
4. Rich experience:
Our products have been exported to America, Russia, Saudi Arabia, Canada, Romania, Sri Lanka, Malawi, the Philippines, Greece, South Africa, and so on.
5. Constantly develop:
We have been devoted to the research & development of steel structure buildings. And we constantly renovate technology to improve the wind- and rain-resistance performance of the products. So their lifespan can be enlarged and it helps accomplish the most cost-effective effect for our customers.
Q: Are you a manufacturer or trading company?
A: We are a manufacturing factory, located in Qingdao City, near Qingdao Port. We have a total of 3 workshops from steel structures to wall and roof sheets.
Q: How about your quality control?
A: We have certificates ISO & CE. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, and loading to ensure no quality defects.
Q: Is third-party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client requirements.
Q: How about your delivery time?
A: Generally within 30-45 days, it is according to the order quantity, partial shipment is allowed for big orders.
Q: What about the installation?
A: We'll provide the detailed installation drawing, and supervisors guiding installation are available. We can do turnkey jobs for some kinds of projects.
Q: How to ensure the product you supply is what we want exactly?
A: The sales and engineering team will provide you with a suitable solution according to your requirements before placing an order. Proposal drawings, Shop drawings, 3D drawings, Materials photos, and Finished projects photos are available, which will help you understand the solution we provided deeply.
